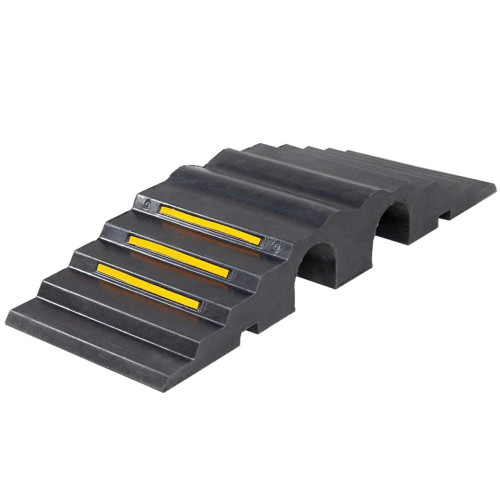

KAB-PRO-M-20 — Rubber Bridge for Fire Hoses, Cables, and Flexible Conduits
The KAB-PRO-M-20 is a high-strength fire hose bridge built to safeguard large-diameter hoses, industrial cables, and temporary service lines laid across roads or work zones. Designed for use in high-demand environments, this rubber hose bridge withstands up to 20 tons of load, making it ideal for applications involving trucks, rescue vehicles, and construction equipment.
With two large channels measuring 100×90 mm, this cable bridge 20 tons accommodates fire hoses, power cables, water lines, and pneumatic hoses without compromising structural integrity or flow. It is made from oil-resistant vulcanized rubber and features an anti-slip surface for safe use in outdoor and emergency conditions.

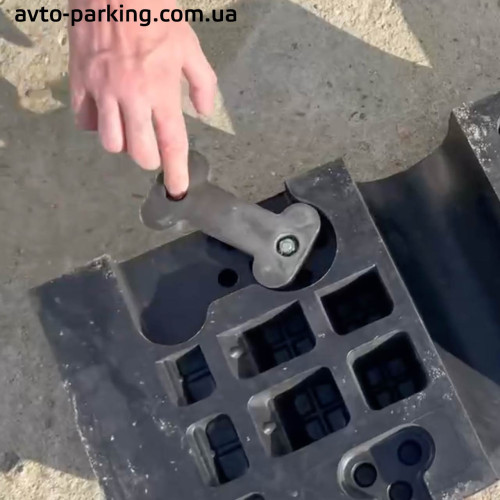

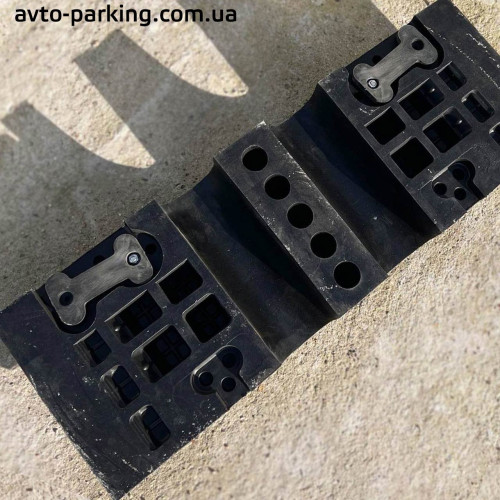

The industrial hose ramp is modular and interconnectable, allowing multiple units to form extended cable or hose protection routes. It’s widely used at fire stations, industrial zones, maintenance sites, and utility service areas where secure temporary hose and cable crossings are required.
Applications
- Fire departments and emergency services
- Construction and maintenance zones
- Utility companies and municipal networks
- Industrial facilities and refineries
- Military installations and depots
- Warehouses, ports, and logistics terminals
Advantages
- Fire hose bridge with 20-ton capacity for heavy-duty operations
- Two wide cable channels — each 100×90 mm
- Protective cable ramp made of industrial-grade vulcanized rubber
- Anti-slip textured surface for maximum safety
- Fast setup, easy transportation and connection
- Resistant to fuel, oil, water, UV exposure, and mechanical stress

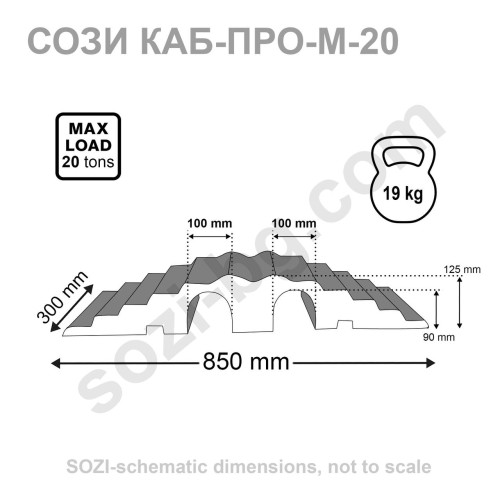

Technical Specifications
- Dimensions: 850×300×125 mm
- Weight: 19 kg
- Number of channels: 2
- Channel dimensions: 100×90 mm
- Material: black vulcanized rubber
- Maximum load: 20 tons
Designed to Protect:
- Fire hoses during emergency deployment
- Power supply cables and telecom conduits
- Hydraulic and pneumatic lines
- Water hoses and drainage pipes
